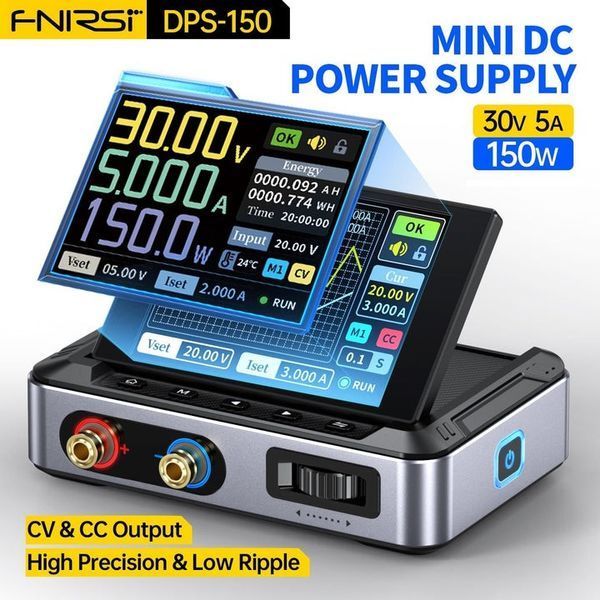

FNIRSI DPS-150 Programmable Mini Laboratory Power Supply (150W)
FNIRSI DPS-150 is an innovative programmable mini-portable DC laboratory power supply. Despite its ultra-compact size and weight of only 178 grams, the device can deliver up to 150W of power, providing precise and stable power for electronic projects, equipment repairs, or research.
Key Features:
- Versatile Power Input: Can be powered by PD/QC fast chargers via USB Type-C, power banks, or classic DC power sources (DC 5.0V - 32.0V).
- High Precision and Stability: Output voltage adjustment from 0 to 30V (0.01V step) and current from 0 to 5A (0.001A step) with ultra-low ripple.
- Flip-up Color Display: Bright 2.8-inch IPS screen with a 90-degree flip mechanism for easy monitoring via numeric or curve displays.
- PC Connectivity: Dedicated PC software support allows for remote control, custom operational scenarios, and storage of up to 6 presets.
- Comprehensive Protection: Safety mechanisms include OVP, OCP, OPP, SCP, OTP, and reverse polarity protection on both input and output.
Technical Specifications:
- Model: Fnirsi DPS-150
- Input Voltage: 5.0 V - 32.0 V (Type-C or DC)
- Output Voltage: 0 V - 30.0 V
- Output Current: 0 A - 5 A
- Max Power: 150 W
- Display: 2.8" Color LCD, 90° flip
- Voltage Resolution: 10 mV
- Current Resolution: 1 mA
- Dimensions: 106 x 76 x 28 mm
- Weight: 178 g
