FNIRSI 2C53T 3-in-1 Multi-functional Device (Oscilloscope, Multimeter, Generator)
FNIRSI 2C53T is the latest 3-in-1 multi-functional tool that combines a full-fledged dual-channel digital oscilloscope, a high-precision multimeter, and a DDS signal generator. Powered by an upgraded FPGA+MCU+ADC architecture, it delivers high-speed processing and exceptional measurement accuracy for professional electronics repair and diagnostics.
Main Features and Advantages:
- Dual-Channel Oscilloscope: 50 MHz bandwidth and 250 MSa/s sampling rate. Features high-voltage protection up to ±400V, XY mode, and math functions (FFT).

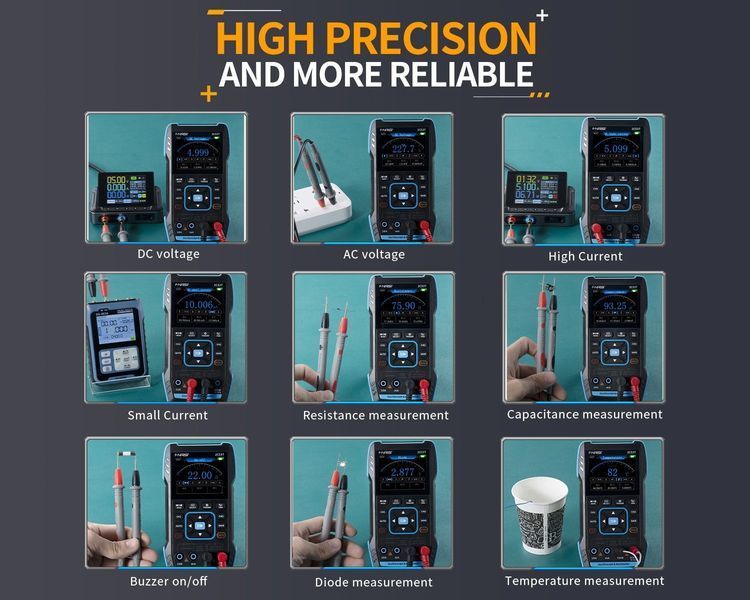

- 20000 Counts Multimeter: 4.5-digit precision with True RMS. Measures voltage (up to 1000V DC / 750V AC), current, resistance, capacitance, and temperature with diode/continuity tests.
- DDS Signal Generator: Output frequency up to 50 kHz with 13 standard waveforms (sine, square, triangle, etc.) for comprehensive circuit analysis.
- IPS Display & Battery: A bright 2.8-inch HD screen for clear data visualization. The built-in 3000 mAh battery provides up to 6 hours of continuous use via Type-C charging.
Technical Specifications:
- Oscilloscope Bandwidth: 50 MHz
- Sampling Rate: 250 MSa/s
- Multimeter Resolution: 20000 counts (True RMS)
- Voltage Range: up to 1000V DC / 750V AC
- Capacitance Range: up to 99.99 mF
- Battery: 3000 mAh (up to 6 hours)
- Dimensions & Weight: 167 x 89 x 35 mm, 300 g
